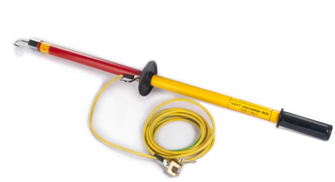

Soft Discharge Rod

IP67 / IP54 Products






Model : SDR-1/11kV, SDR-1/35kV, SDR-1/70kV, SDR-1/100kV

Application

Soft discharge rod is a common safety device being use by electrician technician to discharge the cable or any other electrical device in power cable distribution network companies or any electrical service providers.

Technical Specifications

Model

Damping Resistor

Max. Capacity discharge

Max. Working voltage kV)

Dimensions

Weight

SDR-1/11kV

10 K Ohm

6 MFD

11 kV

32mm Dia x 750mm Length

1.65 kg

SDR-1/35kV

10 K Ohm

6 MFD

35 kV

32mm Dia x 960mm Length

2.2 kg

SDR-1/70kV

15 K Ohm

10 MFD

70 kV

32mm Dia x 1200mm Length

4.0 kg

SDR-1/100kV

20 K Ohm

10 MFD

100 kV

32mm Dia x 1800mm Length

4.5 kg

General Specification
  • Clamping tip : J or Y type.
  • Material : Pultrusion fiber glass.
  • Operating Temperature : 0 deg C to 55 deg C.
  • Storage Temperature : - 5 deg C to 60 deg C.
