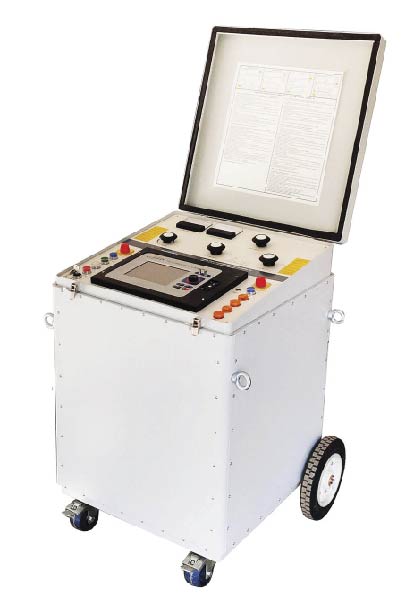

The  Cable Fault Locating  System  COMPAC 20  is used to perform DC high pot test,  Pre-location of fault distance with the help of pre-locator unit and Pin-point underground cable fault in acoustic method with the help of suitable Surge wave receiver and Pin-point sheath faults in power transmission and distribution networks or service provider companies.
Key Features
  • Operating Mode  Surge, Arc / SIM, DC / Proof Test/ Pre-location and Sheath Fault
  • Pin-point location of cable faults in Low, Medium and High voltage cables by acoustic method.
  • Perform DC / Proof test up to 20 kV.
  • DC Test Current 10/20mA.
  • Burn test up to 16 kV  - 60mA for short period.
  • Surge Output voltage selectable in three ranges 4, 8 and 16 kV continuously variable.
  • Full energy delivering capacity at each select range.
  • High Surge energy of 1500 Joules
  • Single Impulse and 1.5, 3 and 6 seconds intervals or as per sequence customer request.
  • Pre-location of cable faults distance with TDR, ICM, SIM/MIM & Decay mode.
  • Big LCD touchscreen color display.
  • Maximum measuring pre-location range up to 64km.
  • Sheath fault location up to 8kV – 60mA.
