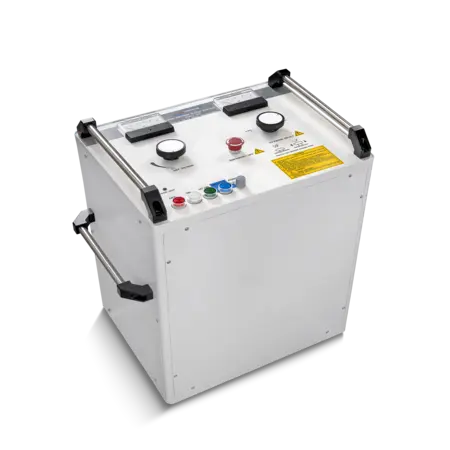

HV Surge Tester SWT 32

Surge Tester / Thumper

Cable Route Tracer

Cable Fault Pre Locator

Surge Receiver / Pin point Locator

High Pot tester

Sheath Fault Tester

Cable Identification System

Compact System

Trolley Mounted System

Van / Trailer Mounted System

Low Cost Van System

Cable Burn Down Equipment

Soft Discharge Rod

IP67 / IP54 Products



It is used to pin-point underground cable faults in power transmission, distribution cable networks in acoustic mode with the help of suitable surge wave receiver.
Key Features
  • Pin-point location of cable faults in Low, Medium and High voltage cables by acoustic method.
  • Output voltage selectable ranges 8kV,16kV,32kV continuously variable.
  • High energy of 1000 Joules at each range (Optional 2000J).
  • Full energy delivering capacity at each select range.
  • Single Impulse and 1.5, 3 & 6 seconds intervals Sequence.
  • Pre-location of cable fault distance with suitable pre-locator unit in ICM mode.
  • Easy to connect with arc reflection filter and pre-locate fault distance in SIM mode.
  • Foldable Pre-locator desk for placing the pre-locator when use and also use as a writing desk.
  • Cable bracket for wound the cable for easy use.
  • Top Flap for protect from dust.
  • Aluminum Extrusion for use outer structure.
  • Big Rubber wheel for easy to carry on site.
  • Safety interlocks indication for Variac, HV switch & HV Output.
  • Power Supply 230V AC + 10%, 50 Hz, Single phase.
  • HT Network 33kV.
