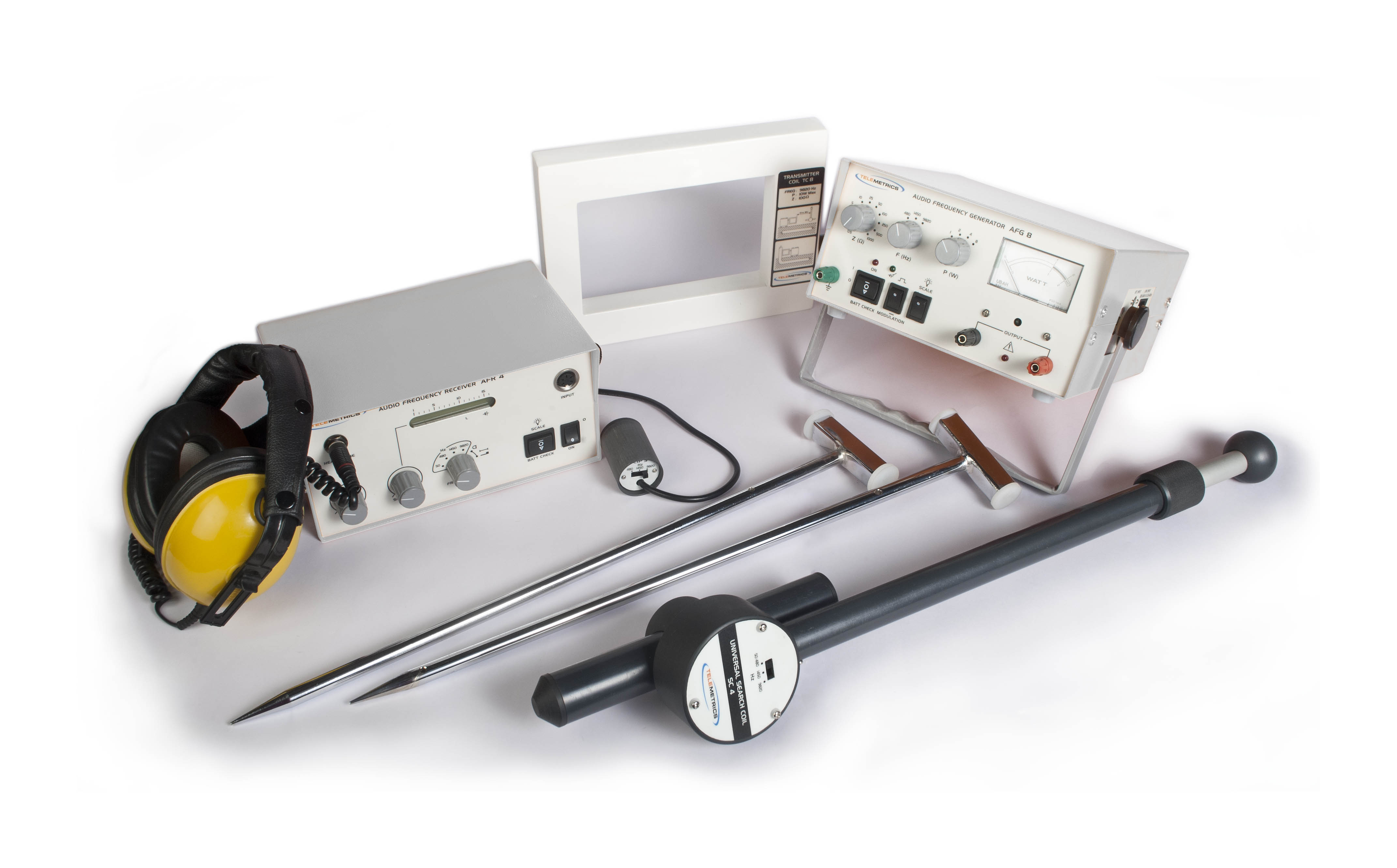

Cable Route Tracer CRT 8

Surge Tester / Thumper

Cable Route Tracer

Cable Fault Pre Locator

Surge Receiver / Pin point Locator

High Pot tester

Sheath Fault Tester

Cable Identification System

Compact System

Trolley Mounted System

Van / Trailer Mounted System

Low Cost Van System

Cable Burn Down Equipment

Soft Discharge Rod

IP67 / IP54 Products





Application

It is used for route tracing of any underground metallic cable in communication, power transmission, distribution and signal cable networks or cable fault location service provider.

It is also use to identification of wanted cable from bunch of cables in communication network.

Key Features
  • Route tracing of underground any metallic cables up to 10 km max length.
  • Depth Measurement up to 5M.
  • Ground survey of underground metallic utilities.
  • Identification of cable from bunch of cables in telecom cable network.
  • Output Power 1, 2, 4 & 8Watt selectable.
  • Output Frequency 480, 1450, 9820Hz selectable.
  • Power supply 230V AC + 10 %, 50 Hz Single phase, or external 12 Volt DC or Internal rechargeable accumulator.
