Surge Wave Receiver SLE 200Z

Surge Tester / Thumper

Cable Route Tracer

Cable Fault Pre Locator

Surge Receiver / Pin point Locator

High Pot tester

Sheath Fault Tester

Cable Identification System

Compact System

Trolley Mounted System

Van / Trailer Mounted System

Low Cost Van System

Cable Burn Down Equipment

Soft Discharge Rod

IP67 / IP54 Products

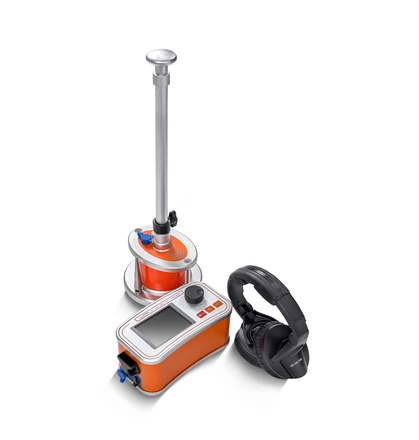

Surge Wave Receiver SLE200-Z is a highly sensitive equipment to exactly locate the fault point in a short time. It can be used on low, medium and high voltage power networks effectively. The success of locating exact fault point on the underground cable depends on the search carried out on the lay of the cable. This calls for an indication to guide the operator to walk precisely on the cable route.
The SLE 200-Z Surge Wave Receiver is an easy operation device used to pinpoint the fault point. It integrated the function of acoustic magnetic synchronization method, the step voltage method, the magnetic field strength method to make the pinpointing accuracy.
Key Features
  • Perfect functions, suitable for pin-pointing all kinds of cable faults and detect cable path.
  • High accuracy
  • Synchronous sensing of acoustic and magnetic signals of the fault with high ability to anti-interference.
  • Waveforms displayed on large LCD
  • With the assistance of the earphone, direct and easy to identify the fault.
  • High Acoustic & Magnetic field sensitivity
  • High Performance electronic suppression of external noise and interference
  • Automatic contactless turn off of the Headset, as the hand approaches the handle
  • Indication of the direction to the fault -. Compass
  • Comparison of last and the new measurement
  • Low batt indication.
  • Graphical indication of the magnetic field
  • Indication of the acoustic signal detection
  • Indication of all adjustments and settings
  • Fault distances measurement
  • Measure of magnetic field and sound coincidence with acoustic selection and calibration of the measuring range.
  • Indication of cable position in respect to the sensor.
  • Cursor to identify the time of delay between the acoustic signal and the magnetic signal, thus to confirm the fault range
  • Automatic switch between different work modes
  • Automatic gain adjustment
  • Indication of cable position in respect to the sensor
  • With back light, automatic power-off and overcharge protection functions. Easy to operate
Working Principle
Acoustic magnetic synchronous pinpointing method is a accuracy and based on traditional audio magnetic pin-pointing method but with improvement.Traditional method use the high voltage generator to impact the fault cable by DC high voltage to make the fault point breakdown and discharge. The mechanical vibration from this delivered to the earth and be collected by the sensor, which is synchronous with the special sound.
The traditional method only use the earphone to monitor and use the meter pointer to help to distinguish the discharging sound. Because this discharging sound is fleeting and difficult o distinguish from the environment noise, it common requires rich experience user. To modify the traditional method, we now use acoustic magnetic synchronous pinpointing method.
Because the magnetic transmission velocity is much quicker than the acoustic transmission velocity, It's definitive sample to find the faulty point by testing the time difference between magnetic signal and audio signal. Keep moving the sensor to find the point with min. time difference, and this will be the fault point.
Please also notice, because there's no exact data for the acoustic velocity in the cable and have no exact data of the cable depth, it is difficult to calculate the distance between the sensor and the faulty point.
Standard Accessories
  • Ground Sensor
  • Headphones
  • Carrying Stick - Connect to Sensor
  • Connecting Cables
  • Carrying Case
  • Instruction Manual
  • Standard Warranty - One Year
  • Other models available - Surge Wave Receiver SLE 90
  • Associated Surge tester use to pinpoint cable faults with surge receiver - Surge Tester SWT 4, SWT 16 & SWT 32
Acoustic magnetic synchronous pin-pointing Acoustic channel Bandwidth All -pass 80Hz~1500Hz Low-pass 80Hz~400Hz High-pass 200Hz~1500Hz Band-pass 150Hz~600Hz
Signal gain ≥110dB
Accuracy 0.1m
Step voltage unction (optional) Magnification times>80db
Gain Adjustment Manual
Indication of the direction to the fault Compass - Yes
Indication of Acoustic signal detection Yes
Power Supply Battery Built-in Li-ion battery 7.4V- 3400mAH
Working time 9 hours approx
Charger Input AC220V±10%,50Hz, Output 8.4V,DC 1A
Quick charging below 4 hours
Display method 320 x 240 dot LCD Screen
IP Protection Sensor - IP 54, Receiver - IP 65
Dimensions 210mm × 95mm × 115mm
Weight 0.6kg
